0.25Hz-10Hz Mini GPS Module 38400bps Two Time SMT Solution

Brand Name : OTW

Model Number : WT-62-M10

Place of Origin : China

MOQ : 10pcs

Price : US $2.4 - 11.80/

Payment Terms : T/T, Western Union

Supply Ability : Above US$100 Million

Delivery Time : 7-10working days after receiving the payment

Chipset : M10050

Type : GNSS Module

Brand : OTW

Operating mode : GPS+GLONASS+GALILEO+ BDS

Baud rate : 4800bps-921600bps,Default38400bps

Update frequency : 0.25Hz-10Hz(default 1Hz)

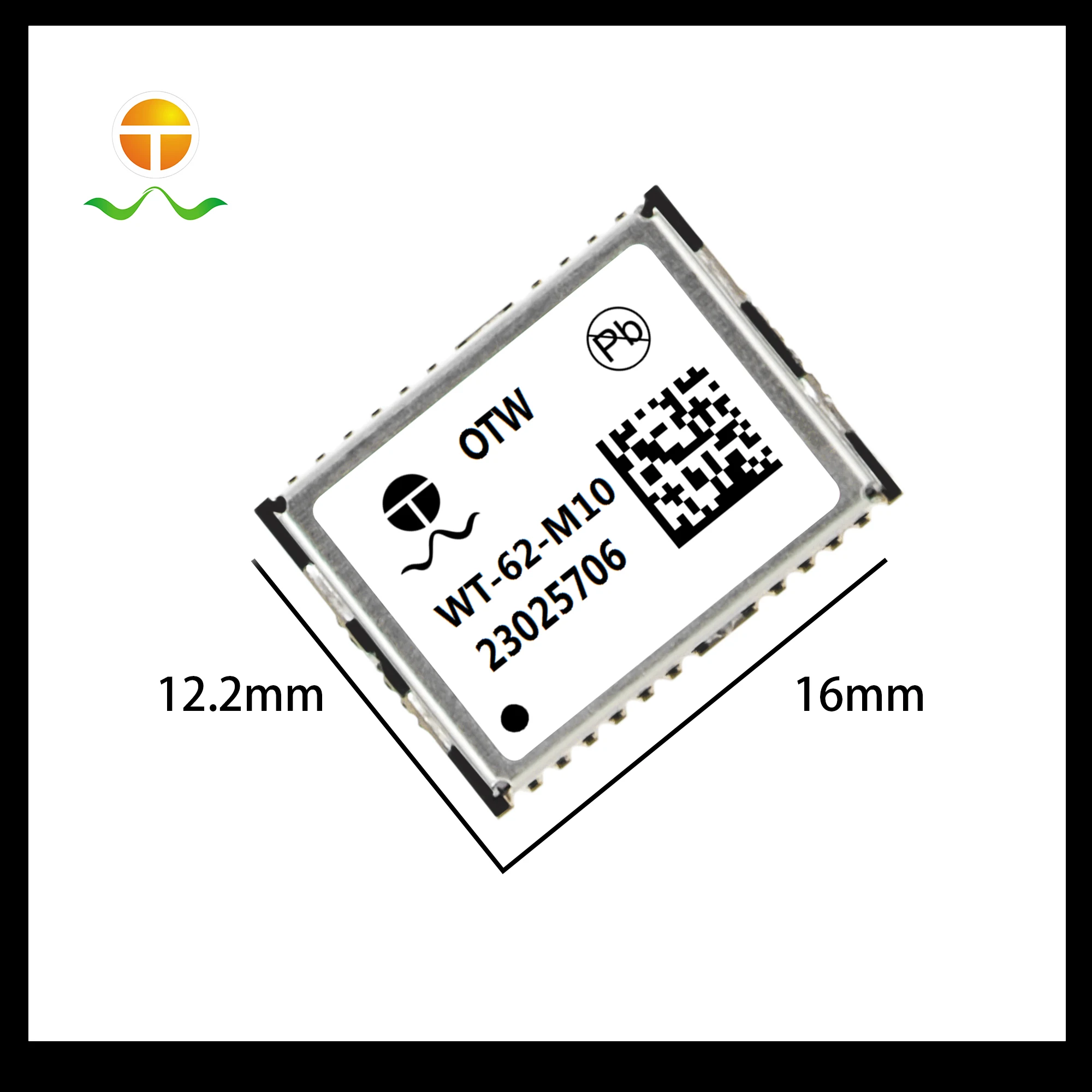

Size : 12.2mm*16mm*2.4mm

Contact Now

The mini gps module navigates the decoy boat using the locator

Product descriptions from the supplier

Overview

0.25Hz-10Hz Mini GPS Module 38400bps Two Time SMT Solution

Application:

● Track tracking products such as personal positioning and car navigation and positioning ● PDA, Pocket PC and other portable devices ● Surveying and mapping products such as area measurement and distance measurement ● Synchronize UTC time and timing areas ● Track recording and GNSS data point calibration ● Electronic dog, learning card and other products

Features:

● Single-sided surface paste, two-time SMT solution, faster application ● Ultra-high sensitivity, low power consumption ● Can receive GPS/GLONASS/GALILEO/BDS at the same time ● Built-in low noise amplifier LNA and filter SAW, even passive antennas can be quickly positioned ● Small size, overall size :12.2x16x2.4mm ● Comply with RoHS standards

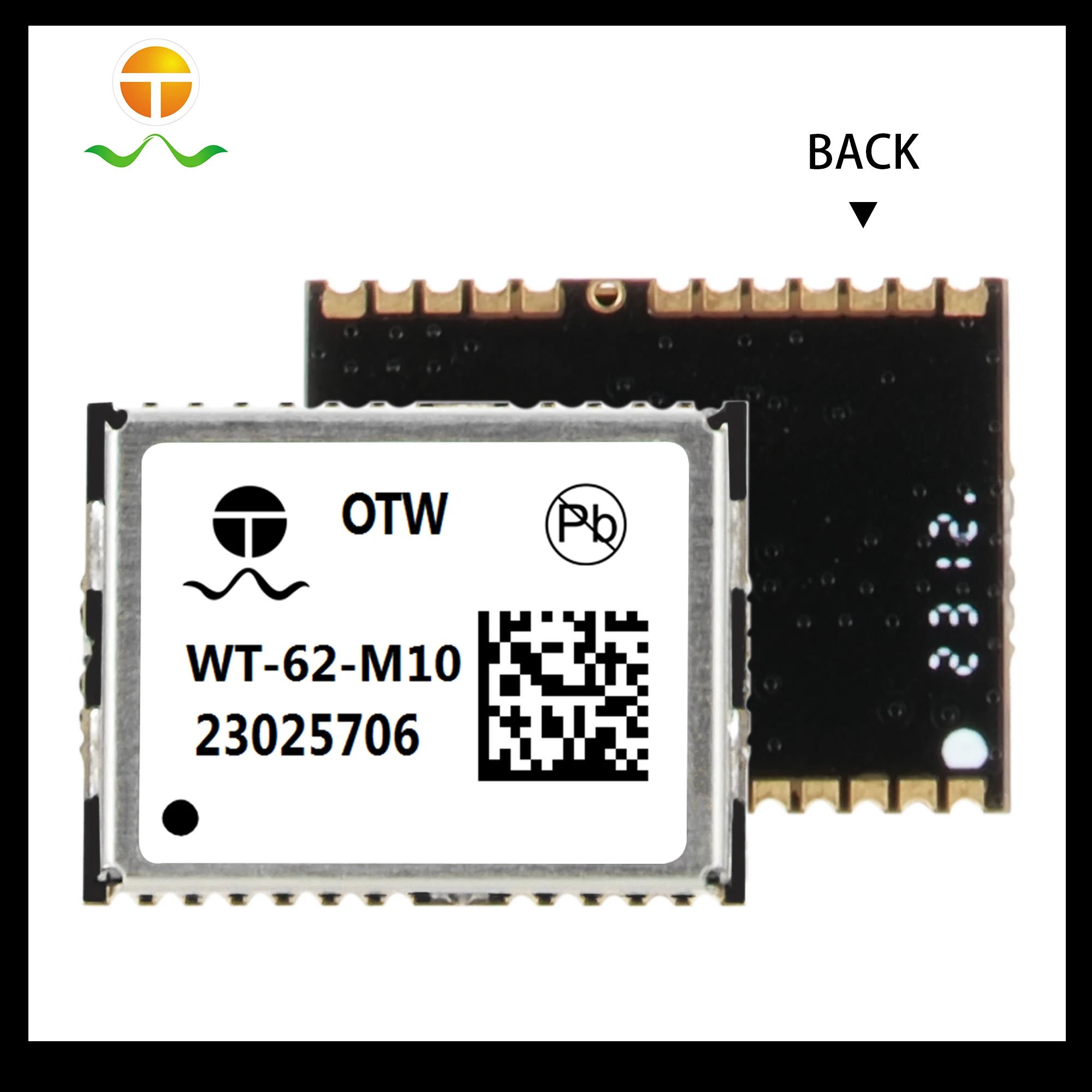

Bottom view

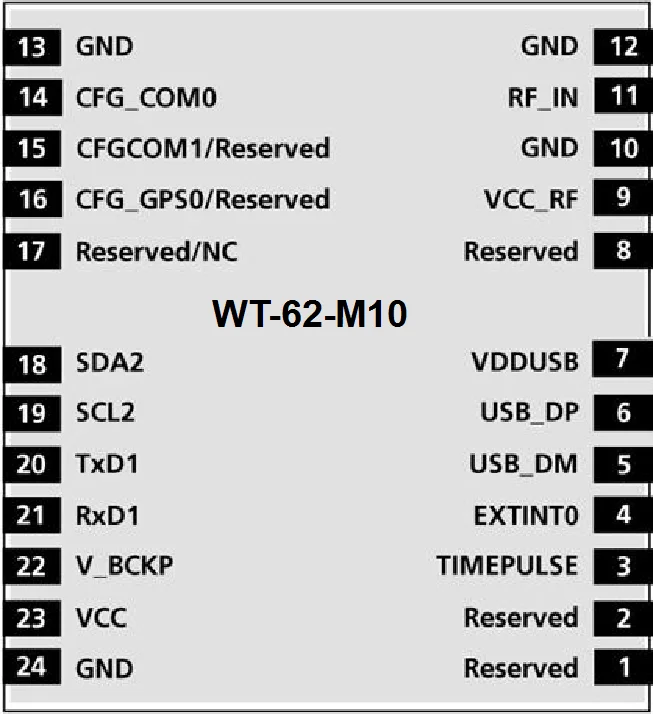

Module pin allocation

Module performance
Chip	M10050
Receiver type	GPS/QZSS :L1C/A (1575.42MHz) Galileo:E1-B/C (1575.42MHz) GLONASS:L1OF (1602MHz+k*562.5kHz,k= -7,....,5,6) BeiDou:B1\|(1561.098MHz)
Agreement	NMEA-0183 compliant protocol or custom protocol
Available baud rate	4800bps~921600bps(default 38400bps)
Sensitivity	Tracking: -167dbm Capture: -160dbm Cold start -148dbm
Cold start	Average 29seconds
Hot start	Average 1 seconds
Accuracy	Horizontal Position : average, SBAS < 2.0m
18Max Height	18000 M
Max Speed	515 m/s
Max Acceleration	≦ 4G
Regeneration frequency	0.25 Hz -10 Hz
Port
Port	UART/TTL/R232
Physical property
Type	24 pin stamp holes
Size	16.0mm12.2mm2.4mm(+/- 0.5mm)
Power supply
Voltage	1.8V~3.3V
Power Consume	Maximum performance: Capture :25mA, tracking (power saving mode /1HZ) : 5mA
Oerating Environment
Humidity range	5% to 95% non-condensing
Working Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃
